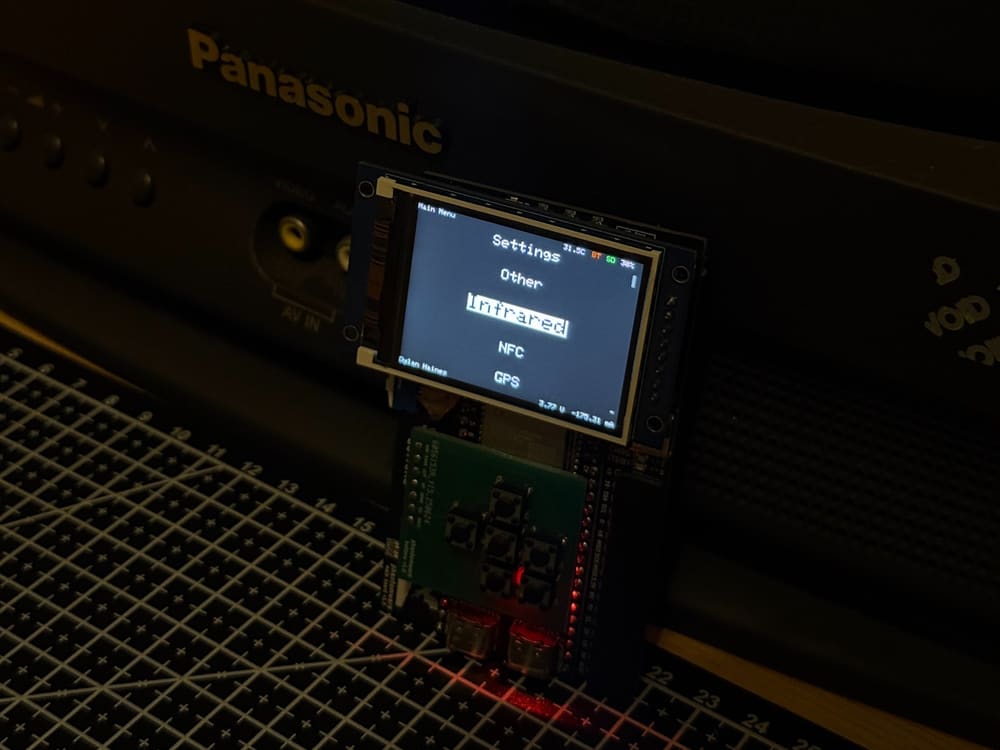

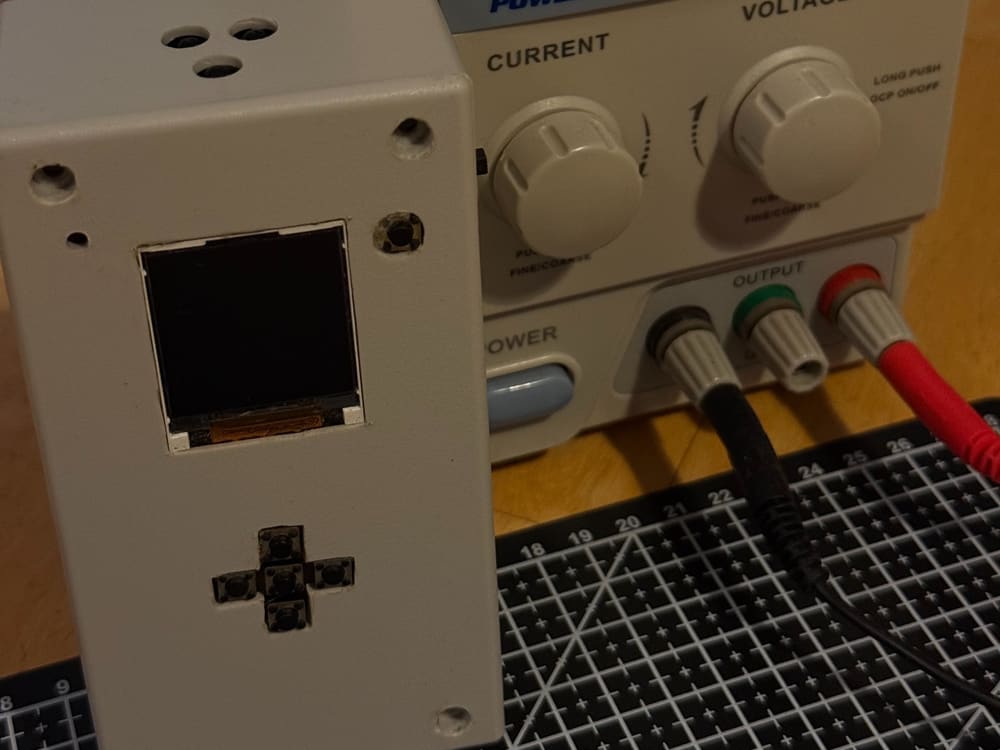

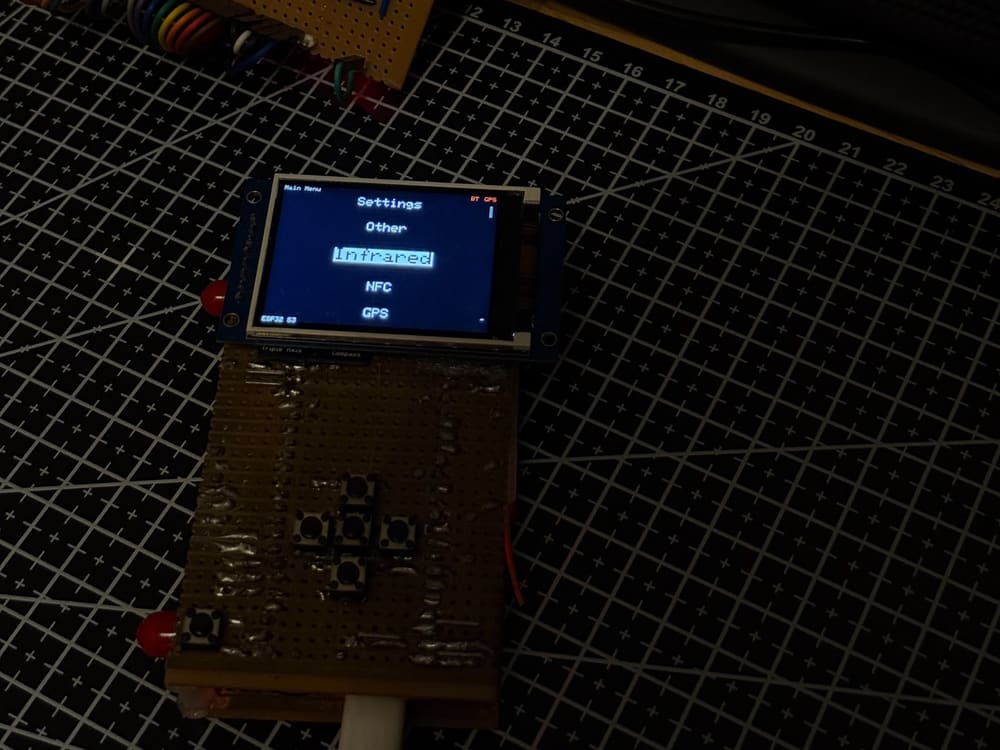

A fully custom-built multi-tool device based on the ESP32-S3, designed for wireless analysis, signal interaction, and hardware experimentation — my take on a Flipper Zero, built from scratch.
Hardware
- ESP32-S3 + custom PCBA
- 320×240 ST7789 TFT display
- 3000mAh battery (USB-C charging via TP4056)
- SD card storage
- 3× IR LEDs + IR receiver
- NRF24L01 expansion (GPIO-based module board)
- Temperature sensor + battery gauge
- Buzzer + 5-way navigation buttons
Capabilities
- GPIO toolkit: PWM generator, oscilloscope, frequency analyser, voltmeter, UART bridge
- WiFi tools: scanning, monitoring, deauth (educational), beacon spam, evil portal, AP hosting
- Bluetooth tools: scanning, advertisement spoofing, device spam (Apple/Samsung/Windows)
- BadUSB / BadBT functionality
- ESP-NOW & NRF chat systems
- Expandable modules: GPS, PN532 NFC
Software
- Modular UI with multiple menu styles
- File uploads over WiFi (SPIFFS)
- Fully extensible tool framework
Phantomware vs. Flipper Zero
| Feature | Phantomware | Flipper Zero* |
|---|---|---|
| Microcontroller | ESP32 S3 Dual-core XTensa LX7 | STM32WB55RG |
| Bluetooth and WiFi? | Bluetooth 5 & WiFi 4 | Bluetooth 5.4 |
| Display | 2” 240x320 TFT LCD | 1.4” 128x64 Monochrome |
| IR Transceiver | 3x VSMY14940 LEDs + TSOP75438WTR | 3x VSMY14940 + TSOP75338TR |
| NFC Support | PN532 via SPI | ST25R3916 |
| Battery & Power Mgmt | 3000mAh LiPo + TP4056 + MAX17055 | 2100mAh + BQ25896 + BQ27220 |
| Expansion Options | Micro SD + 16 GPIOs | Micro SD + 18 GPIOs |
| Target Use Case | Signal analysis, RFID/NFC, IR, tinkering | Sub-GHz, RFID/NFC, IR, utility |
| Open Source? | Open Source & fully customisable | Open Source with limitations |
| Typical Price Point | ~$50 USD | $200 USD |
Information for Flipper Zero is based on publicly available specifications and may vary.
Schematics & Drawings

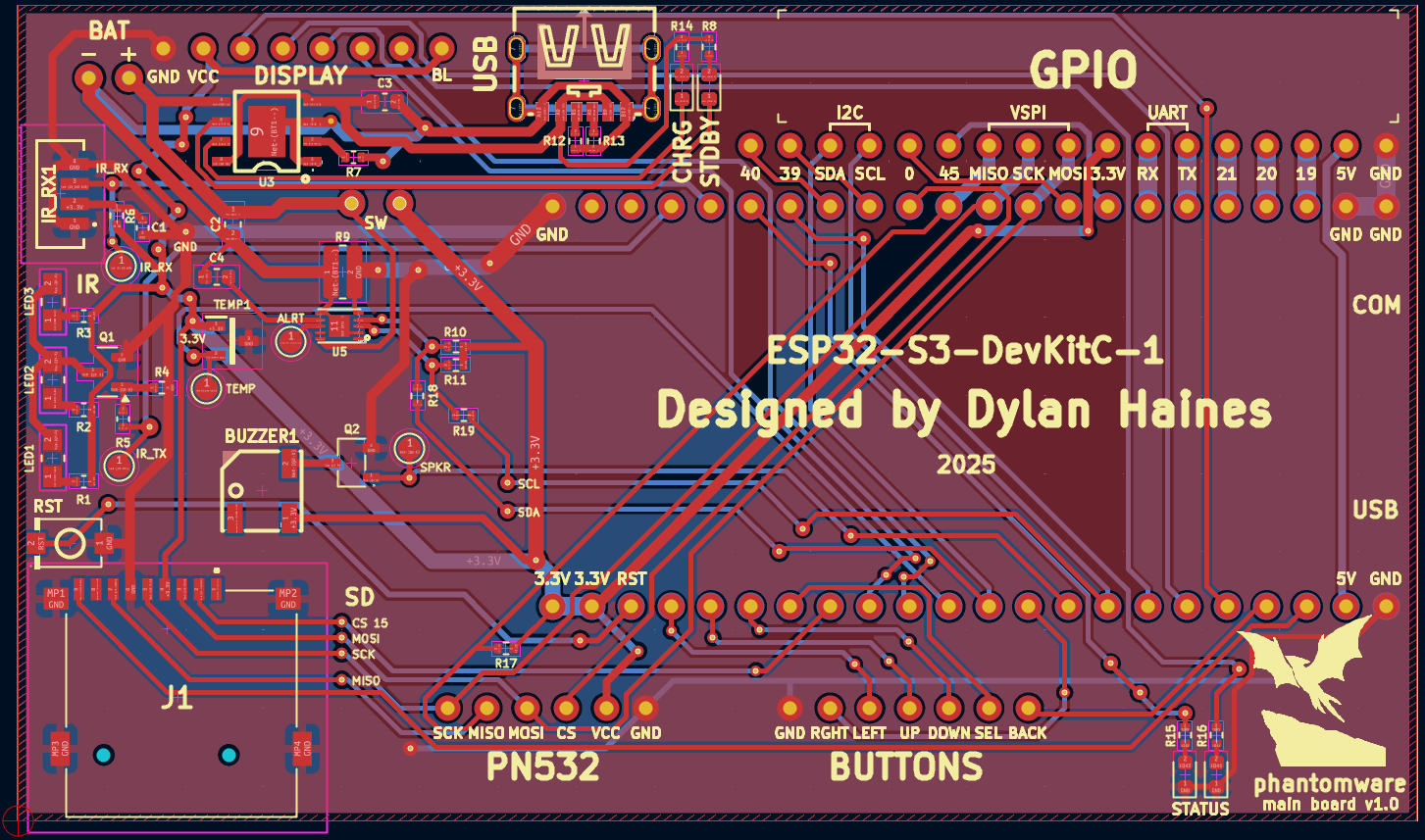

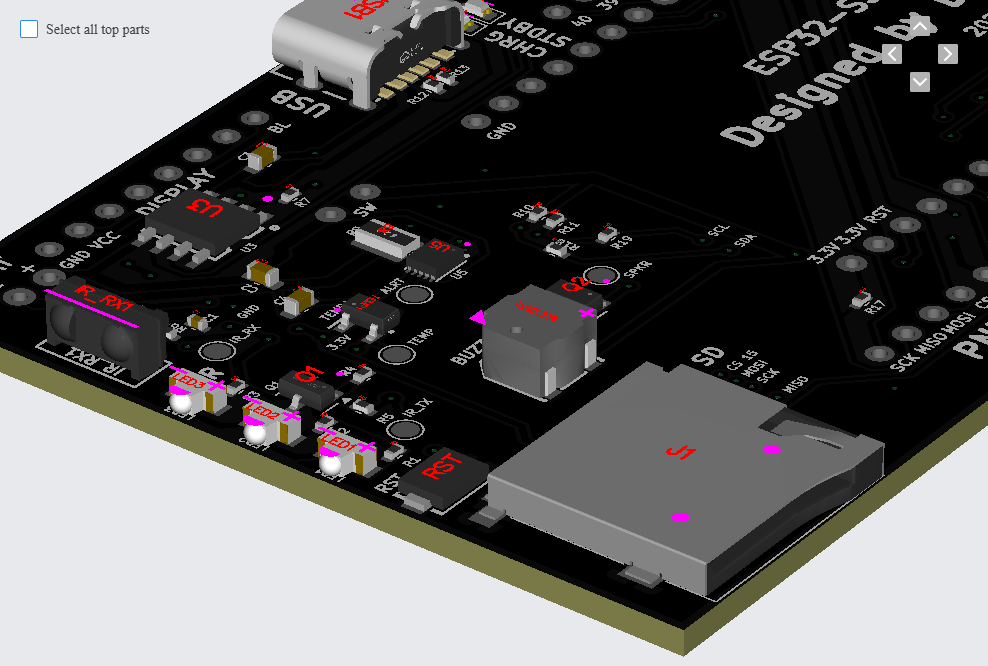

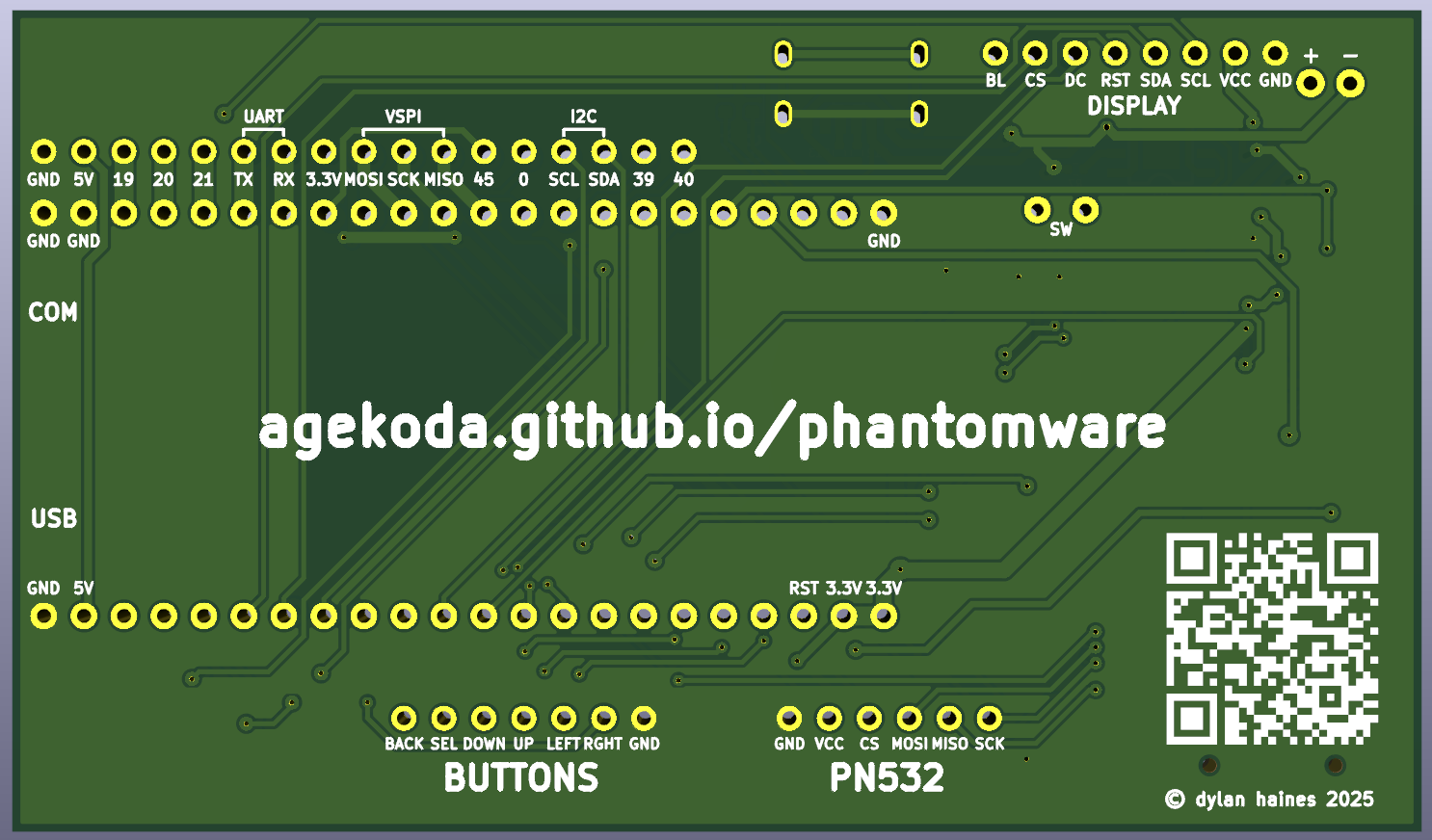

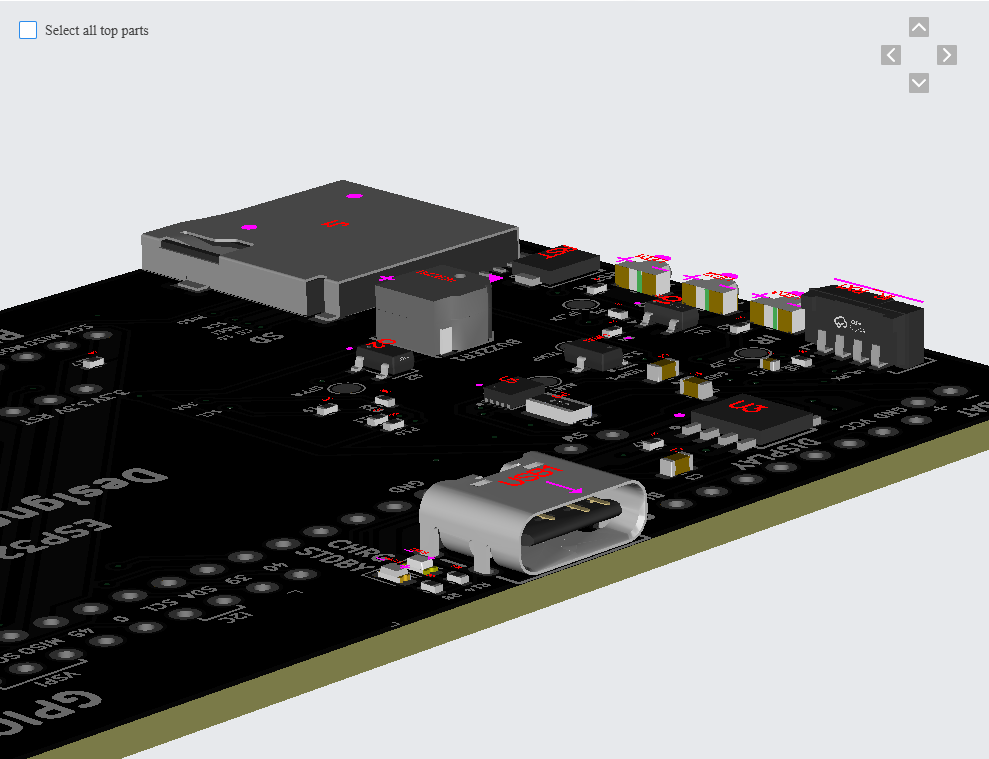

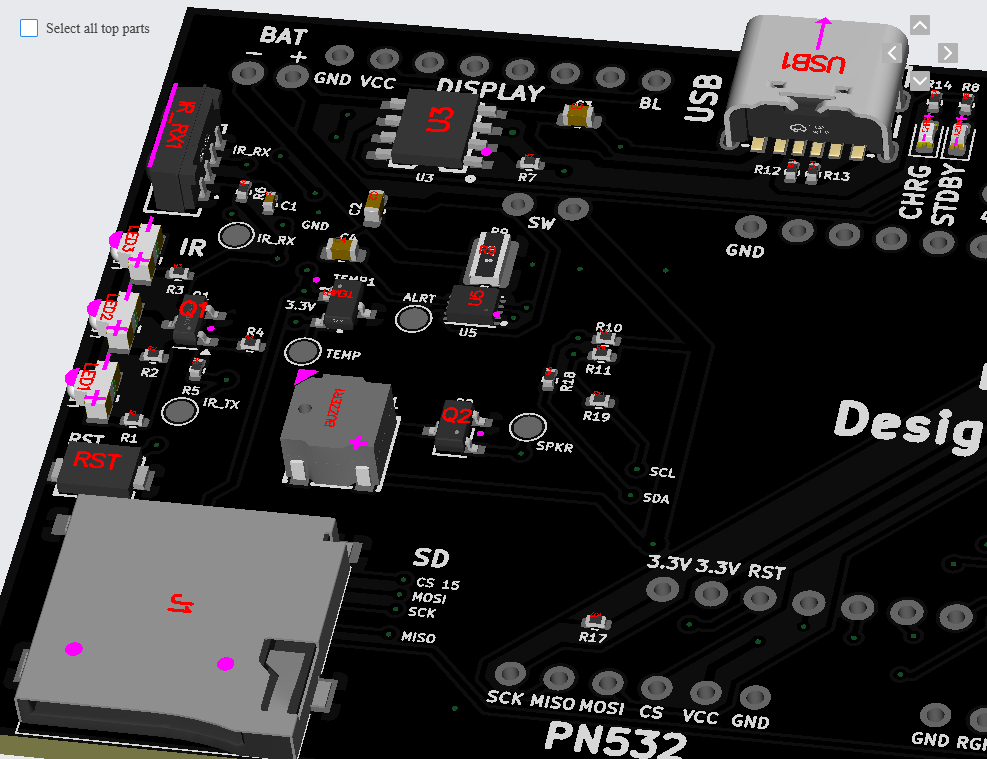

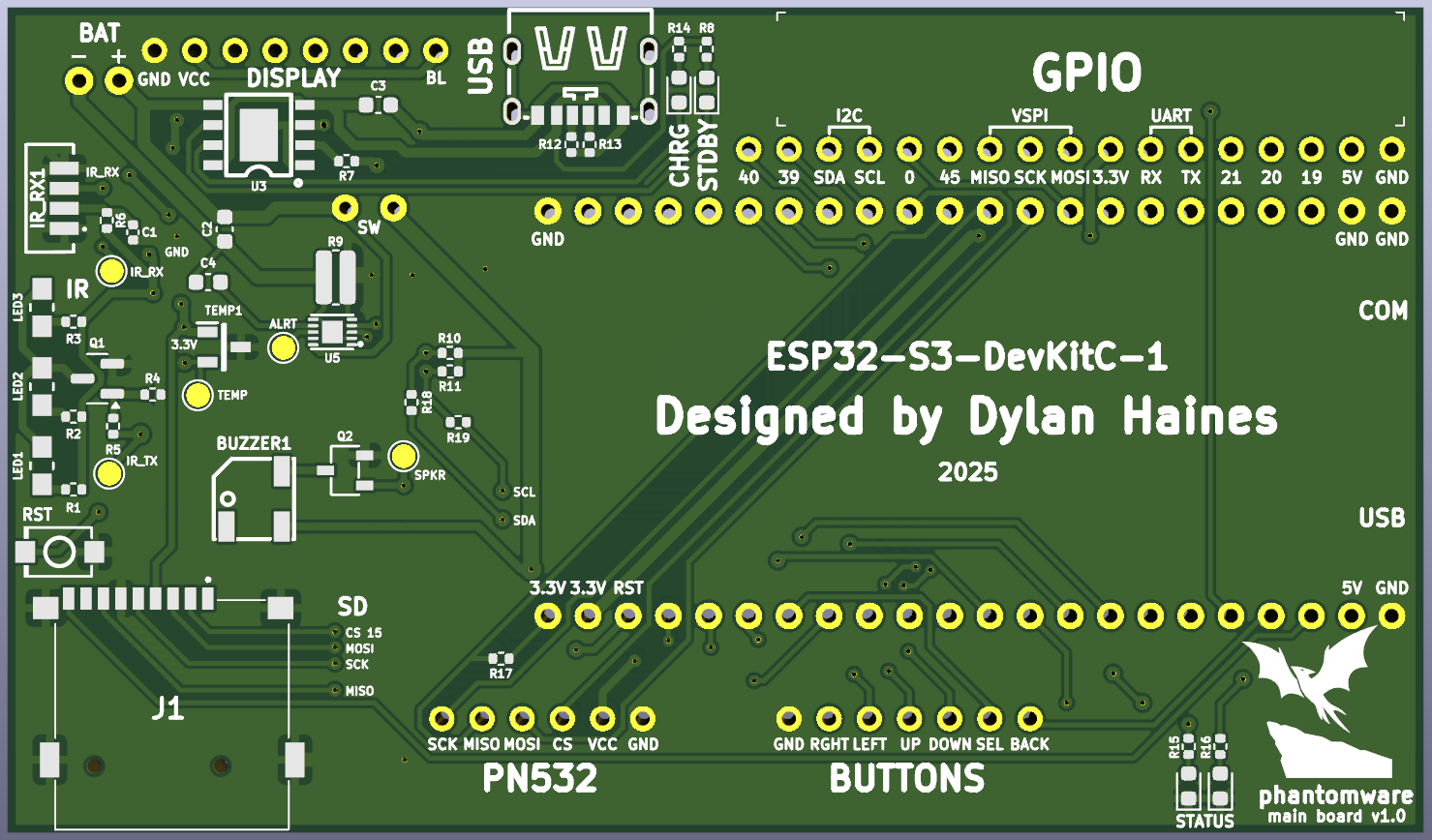

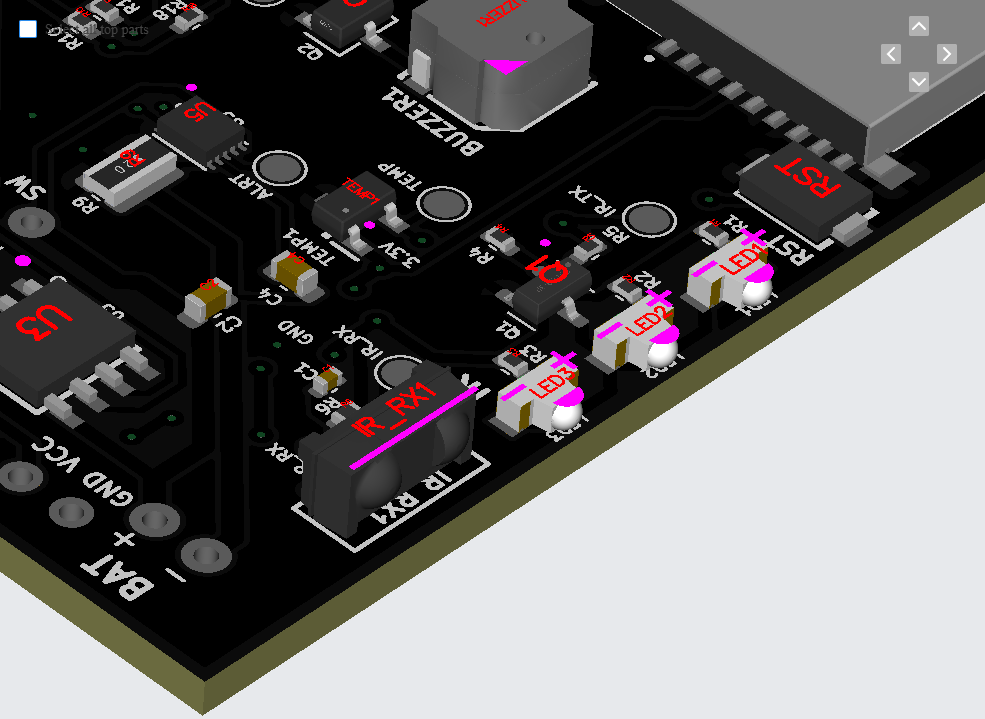

Front, back, 3D views, PCB layout, and schematic.
Schematic (PDF)
